Universal 4 Link kit With Pan Hard From Full Tilt Street Rods
Application: Full Framed or Sub Framed Cars and Trucks

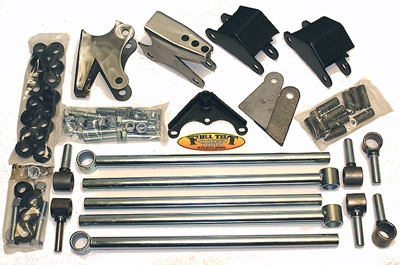

This 4 link kit includes threaded heavy 1″ diameter seamless bars (.188″ side wall), with steel adjusters. Link bars are 22″ long C to C with the adjusters threaded all the way in. Link bars can be shortened for a custom fit. Axle brackets are designed for standard coil over shocks or Shockwave type air suspension. The brackets incorporate 3 ride height mounting points that offer about 3″ of up or down static shock placement. A bolt on panhard bar is included in the price for a Ford 9″ axle. For GM axles choose the “long bent” panhard option. This version welds to your axle tube. You cannot weld panhard mounts to a GM center.

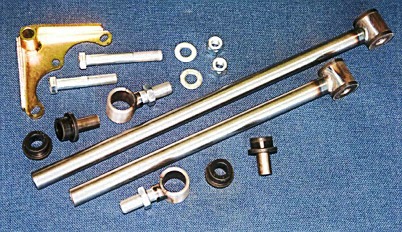

The axle bracket bottoms have a 5/8″ diam. “coil over” mounting hole. The axle brackets will accommodate most axle tube diameters. Kit includes pan hard bar to bolt to Ford 3rd members or optional weld on axle tube brackets that will push the bar out far enough to clear a GM pumkin. Trimming/fabbing may be required. The other end bolts to included frame weld on brackets. Panhard includes urethane bushings, inner bolt sleeves and all hardware to mount.
Most applications will mount the forward link bar brackets to the inside or outside of your frame rails. Kit does not inlclude shocks and ships as raw steel.
Sway bars, forward crossmember support and upper “coil over” crossmember available! See below for options.
