TCI 7/8″ or 1″ Mustang II Front Sway Bar – Mounts Behind Cross Member

PN: 200-TCI -M2-SWY

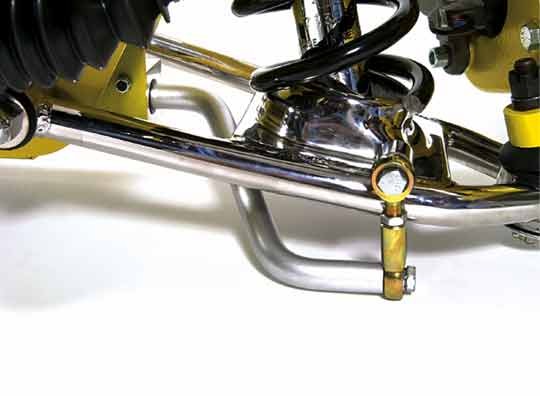

TCI Mustang II Performance Rear Mounted Front Sway Bar – Fits TC M-II IFS Kits or Universal Fit: This Total Cost Involved front sway bar fits all of their hot rod and classic truck M-II kits that use a rear mounted bar. Does not fit other TCI muscle car M-II kits. Makes an excellent universal bar for your project.

As with all TCI products, fit, finish and engineering is superb making for an easy install. Kit uses threaded end link heim joints for a no slop bar.  No end link bushins to wear out and it looks great! The bar ships as raw steel or chrome with the chrome option below. If your retro fitting you can choose to add weld on threaded bungs which would need to be welded to your lower control arms. Kit includes aluminum pillow blocks that are mounted to the rear of your cross member outside and below the lower control arm rear pivot pin. Earlier TCI M-II cross members or other brand cross members will need to have some extra plate welded on extending the bottom edge so as to give the lower pillow block bolt a place to be mounted to.

Available in 7/8″ diam. 40″ or 1″ diam. 43.125″ lengths. Typically the 40″ is for track widths of 57″ or narrower and the 43″ for tracks of 58″-60″. If you have existing mounts on your control arms measure and order appropriate length bar. Be sure a rear mounted bar will clear your oil pan sump before ordering! Bar will protrude rearward about 1.5″ from the backside of the cross member. It does mount to the very bottom of the cross member…this helps oil pan issues.

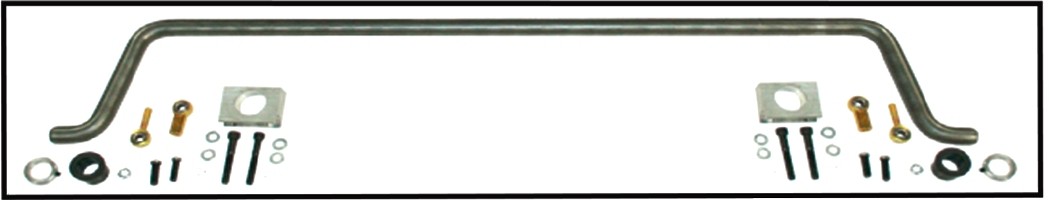

Kit Comes With:

  • 7/8″ or 1″ Anti Sway Bar
  • Hiem End Links
  • Frame/Crossmember Mounting Brackets with Bushings
  • Hardware and Instructions

Please Pick Your Vehicle Below

  • Summary
  • Details
  • Review


TCI Mustang II Performance Front Sway Bar – Fits TCI IFS Kits

Additional information

Weight 18 lbs

Please Choose Your Vehicle Or Instead Select Your Bar Width Below

Choose Bar Width

Product price: $239.00
