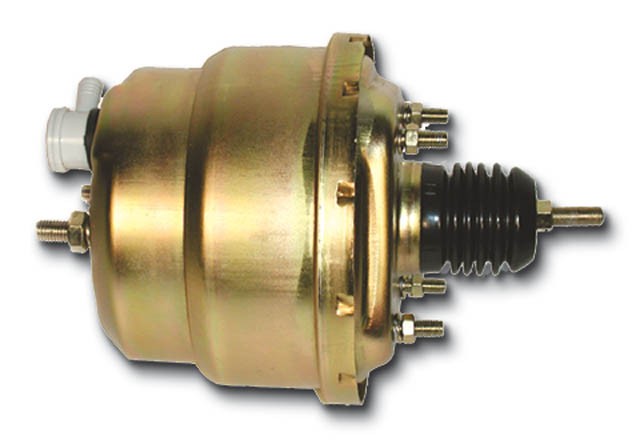

7″ Universal Dual Diaphragm Slim Line Power Brake Booster – Zinc Plated Steel

$79.00

(0) Review this Product

Our Slim Line power boosters are a universal fit system that can be direct firewall mounted or used with adapter brackets for specific applications.They ar also the booster of choice for under the floor mounting. They are an excellent solution when a big block engine or tall valve covers interfere with the booster. Highly adaptable, these units are a great solutions for someone looking for a new, high quality, great looking booster. They are compatible with all disc or drum systems. All steel universal boosters come zinc plated in a gold CAD OEM look finish.

The double diaphragm 7″ unit will provide good braking for vehicles up to around 3600 LBS (Tri 5 Chevy for example). It offers the SAME power assist as a single 8″ booster and is a 40% increaes in assist vs. a single 7″ diaphragm booster.

Our Universal Mount Kit includes:

  • New 7″ Plated Steel Dual Diaphragm Booster Unit
  • One Way Vacuum Source Check Valve – Installed
  • Mounting Hardware
  • Short “Booster to Master Cylinder” Push Rod – long rods available upon request
  • Standard Square 4 Stud Firewall Side Spacing of 3 3/8″
  • Standard 2 Stud Front Master Cylinder Mount Spacing of 3 3/8″
  • Summary
  • Details
  • Review

Additional information

Weight 8 lbs

Reviews

There are no reviews yet.

Be the first to review “7″ Universal Dual Diaphragm Slim Line Power Brake Booster – Zinc Plated Steel”

Your email address will not be published. Required fields are marked *

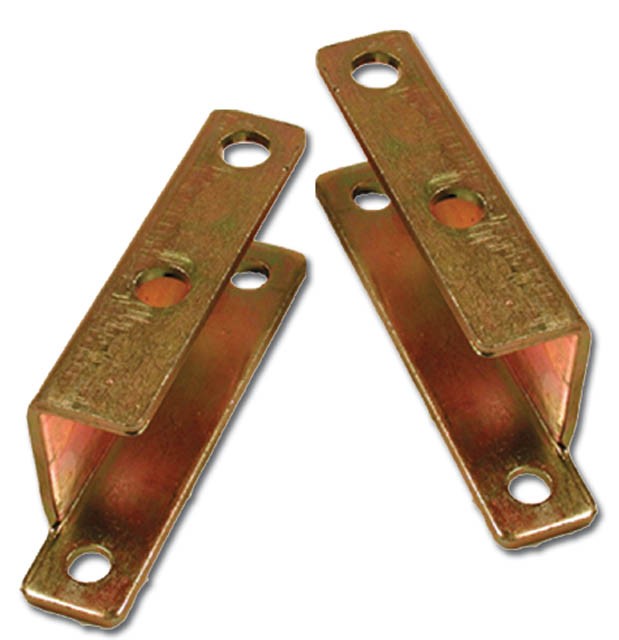

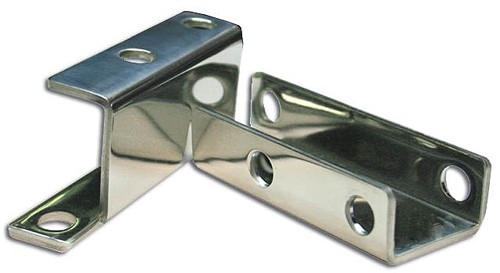

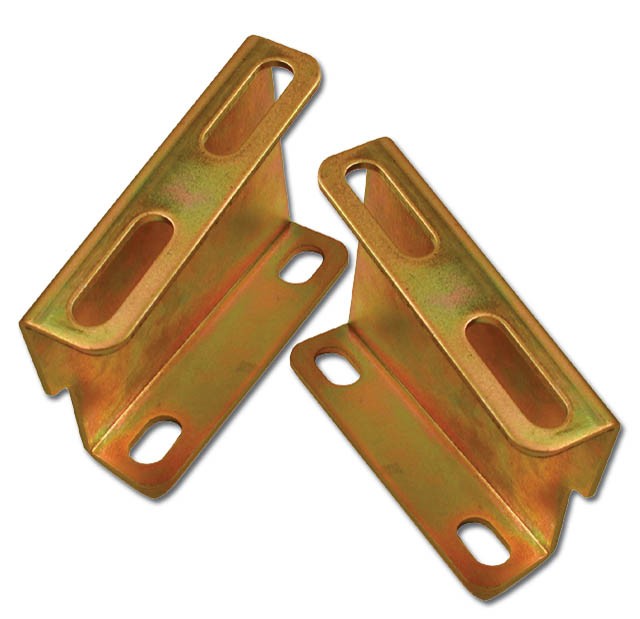

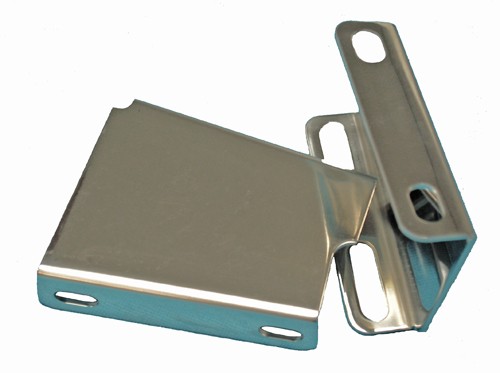

Add a Bracket
